Constant packet loss, can't find a solution!
GuiMR
Netzwerkforscher
Netzwerkforscher

Hi



I have a 250 Mbps coaxial cable internet connection.

The connection has been unstable for months, and it's due to packet loss.

The issue manifests itself in many ways, such as:

  • while in video calls, the connection freezes for about ten seconds then goes back to normal
  • while browsing the web, pages load quickly but all of a sudden you click a link and it hangs on loading for about 10 seconds, then it goes back to normal
  • while streaming, the feed gets stuck on buffering for a few seconds then goes back to normal



I'm sure you can imagine how infuriating it is to have this sort of unstable connection for months.



My networks setup is straightforward:

  • I have the Vodafone Station modem/router (the gray one with a foot that looks like a metal tube), set to bridge mode. The modem is right next to the only coaxial cable outlet in my apartment, and is connected to it via a very short (0,3 m) very high quality (gold plated plugs, 135 dB) satellite coaxial cable (the ones with the F-plugs you screw onto the outlet). This means on my end there should be zero signal losses caused by the cable, since the hardware situation is basically ideal.
  • A single Cat6 ethernet cable connects the Vodafone Station to my router (Ubiquiti). The entirety of my home network then connects to the Ubiquiti router, all through ethernet cables (I basically don't use WiFi except for phones).

With a 100% wired network, using high performance hardware, I should expect to have rock solid internet with a super stable connection. However both people who live in this apartment notice the issues I mentioned often, in different PCs, laptops, and even phones.



Before I figured out the issue was caused by packet loss, I contacted Vodafone (around September) and had the Vodafone modem/router replaced. This didn't fix the issue.



Once I had the thought that packet loss could be the reason for the issues (a week and a half ago) I started running pingplotter tests.



Reading around these forums I stumbled upon a thread in which it was mentioned that to fix high packet loss, one should contact tech support and request that the connection be set to IPv4. I did this, and it helped a bit (packet loss used to be around 5,5% and now it's "only" around 1,6%), but it didn't fix it completely.



Yesterday I called tech support again to ask what could be done about this. At this point I must admit my German is OK, but not good enough to discuss tech over the phone. The lady on the line basically told me to wait an hour and power cycle my Vodafone modem. The internet connection went down for several minutes, so I assume she remotely triggered something like a software update, but I am not sure. I power cycled the modem as instructed, but the issue remains unchanged.



I am losing my mind here. How on earth can I fix this??? There has to be a way, otherwise I 100% must find an alternative internet service. Even DSL would be better, what use is it to have high speeds if the connection is super unstable?



Here are a few pingplotter results:



before switching to IPv4:12h.png

after:


here's a longer one I ran today:


(I have no idea what caused that big red patch at the end, the internet just went down for about 70 seconds, randomly)



I still have the test running as I type this. Packet loss at the final hop is at 2% right now.



To be very clear: all those times when packet loss happens, we clearly notice it, I don't think this a case of "servers ignoring ICMP"

Please help, we are losing our minds.

41 Antworten 41
Tobias
Ex-Moderator:in
Ex-Moderator:in

Hi @GuiMR,



we cant replace it with a different modem for now, but, my colleagues working on  fix for that bridgemode problem, should be fixed with a firmware updater later on.



Regards



Tobias

Bewertet hilfreiche Beiträge mit Likes!
GuiMR
Netzwerkforscher
Netzwerkforscher

So there is a confirmed bug in the firmware after all?



Also, can you please find out what "later on" means? Are we talking about "one or two weeks" or "five to six months"?

In my opinion there is already a firmware which solves this problem as often discussed here...

@lars_icebear

In my case I'm using model CGA4233DE. The only firmware fix I've read about concerned a different model.

Are you aware of a working firmware version for model CGA4233DE?

@GuiMR
sorry, didn't see which model you are using.
I was talking about the other model where the firmware with the "a" on the end should fix that problem. But I'm not aware of how to get this firmware...

My problem with the Bridge mode is that the router restarts randomly when BM is turned on.

sorry for making you wrong hopes.

<- very bad German to English translation 😃 ->

Claudia
Ex-Moderator:in
Ex-Moderator:in

Hello GuiMR,



currently it is unknown when the new firmware will be available. The colleagues hope for a solution in the next few weeks. I added a task for you to the central problem ticket for the bridge mode problem. That way your modem gets the firmware earlier.



Kind regards,

Claudia

Bewertet hilfreiche Beiträge mit Likes!
GuiMR
Netzwerkforscher
Netzwerkforscher

Allright, so it's been almost a month. Here's an update on the current situation:



Clearly some work is being done about firmware in the background. Halfway through March the firmware version on my device changed from "3.0.41-IMS-KDG" to "factory-nvram-generic-brcm93390wvg-20210902023734" for a little while, then it was changed back.



Last week I ran a pingplotter test.



Bridge mode OFF:



late March bridge mode OFF.PNG

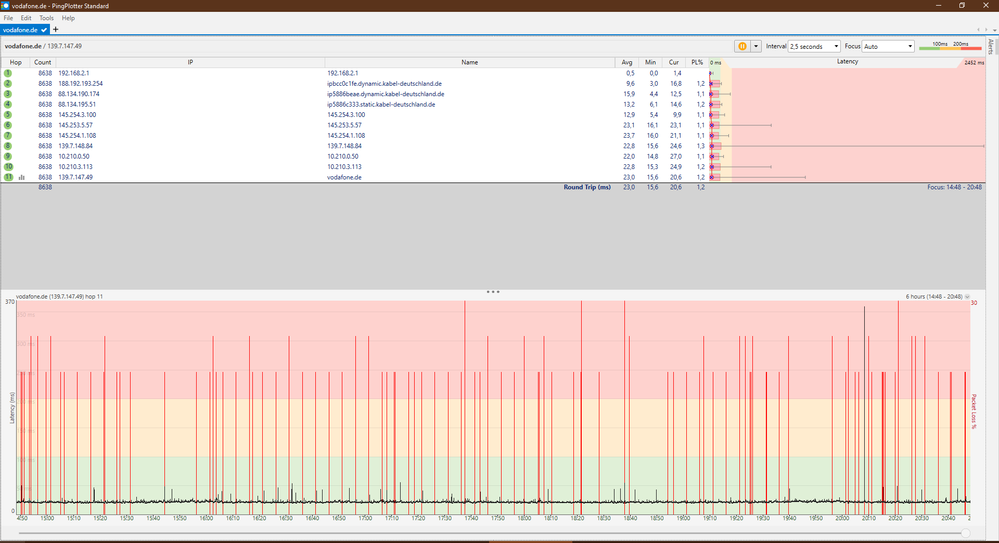

Bridge mode ON:



late March bridge mode ON.PNG

The packet loss is still much higher with bridge mode on. I guess they are still working on the firmware, which is understandable.



However, the packet loss with bridge mode off increased again.

At this point I consider that I gave the technical support service plenty of time to try and figure this out. After months of communication and four separate technician visits, the signal quality issues continue to cause packet loss regardless of bridge mode.



I have initiated a contract for DSL internet service and will soon terminate my cable internet service. Speed is useless if the connection is not rock solid.



Thank you for your time, you may close the thread.

pRo-Marco
Ex-Moderator:in
Ex-Moderator:in

Hi GuiMR,



when BM is off, there should be no packet loss. I tried some config-change. Please test it again.



Kind regards
Marco

Bewertet hilfreiche Beiträge mit Likes und Sternen!
GuiMR
Netzwerkforscher
Netzwerkforscher

@pRo-Marco  schrieb:

when BM is off, there should be no packet loss.


Correct, there should be no packet loss.

There should be no packet loss with bridge mode on.

There should be no packet loss with bridge mode off.

There should never be packet loss. But there is, and lots of it.

A customer should not need to have a network diagnostic running 24/7 to try and keep track of the stability of the internet connection.



I am tired, it has been months, I have had to manage my life around technician visits 4 times and the issues remain, I have packet loss with bridge mode off, and even more packet loss with bridge mode on.



I know from a technical point of view managing high speed internet on a coaxial cable network is not easy, there's many sources of signal noise. But Vodafone has backdoor access to basically every modem connected to their network. If Vodafone cared about providing high quality service, they could be running diagnostic checks to find and fix signal losses. That would require that Vodafone cared about service quality, and would involve some effort, but is entirely viable.

Instead, nothing happens until a customer gets tired of the unstable connection and takes the time to install network diagnostic software and run tests and create a huge thread on the forums (basically doing Vodafone's work for them). And even then, Vodafone can't solve the issue.



And may I remind you, my packet loss is below 1% now (still unnaceptable) because I figured out IPv6 makes it much worse and took the time to call tech support and request that my connection be permanently set to IPv4. Which means the other 99,9% of customers who don't even know what an IP address is are stuck with packet loss above 5%.



I meant what I said in my previous post, we are done with Vodafone Kabel in this household. It's faster than DSL, sure, but having fast internet means nothing if you get random stutters all the time.



I have already initiated a DSL contract, and the moment the DSL connection is online I wil cancel my contract with Vodafone Kabel.



The issue has remained unsolved for months and I don't care anymore, I'm going to terminate my contract.

It seems changing internet providers is the only solution for this problem!



You may close the thread.



P.S.: I took a look at the connection out of curiosity (I have Pingplotter always running anyway) and no, it's not solved. In fact the packet loss is slightly higher as you can see:

Mehr anzeigen

Bridge mode OFF






Wallace
Ex-Moderator:in
Ex-Moderator:in

Hi GuiMR,



there is currently still a return path glitch and our technicians are already in the process of removing it. You will receive a text message from us when our colleagues have been successful.



Regards

Wallace

Bewertet hilfreiche Beiträge mit Likes und Sternen!
